How do I troubleshoot a hydraulic problem on a Case IH STEIGER 500 HD?

Troubleshooting a hydraulic problem on a Case IH Steiger 500 HD involves a systematic approach to identify and resolve the issue. Here are some steps you can follow:

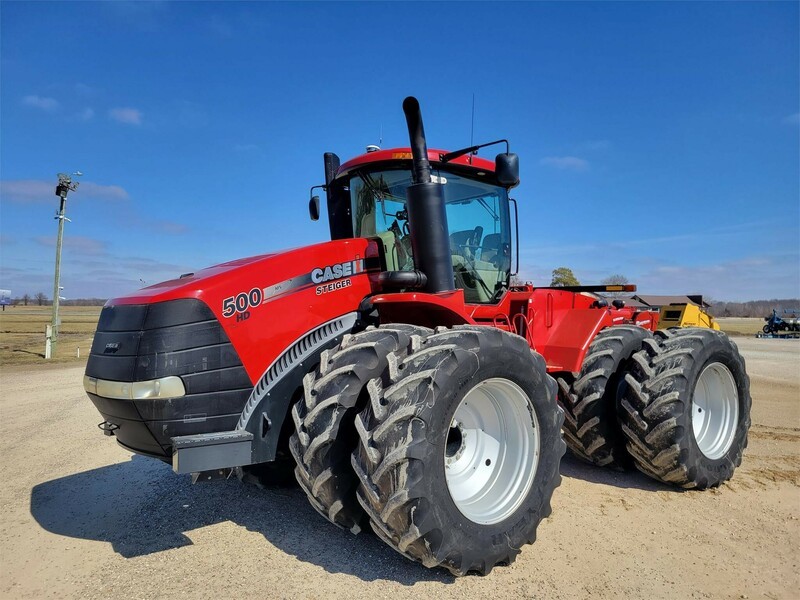

Hydraulic problem on a Case IH Steiger 500 HD

1. Gather information: Collect as much information as possible about the symptoms and the circumstances surrounding the hydraulic problem. This includes noting any changes in performance, unusual noises, leaks, or other issues. Review the machine's manual for any specific troubleshooting steps or diagrams related to the hydraulic system.
2. Visual inspection: Perform a visual inspection of the hydraulic system, checking for obvious signs of leaks, loose connections, damaged hoses, or worn-out components. Ensure that all hydraulic lines and fittings are properly secured.
3. Check hydraulic fluid level and condition: Verify the hydraulic fluid level in the reservoir or tank. If necessary, add fluid to the appropriate level. Also, inspect the condition of the hydraulic fluid. It should be clean and free from contaminants. If the fluid appears dirty or contaminated, it may need to be replaced.
4. Inspect filters: Check the hydraulic filters for clogs or excessive dirt buildup. Dirty or clogged filters can restrict fluid flow and cause hydraulic problems. Replace the filters if necessary, following the manufacturer's recommendations.
5. Test hydraulic pressure: Use a hydraulic pressure gauge to measure the system's pressure. Compare the readings with the manufacturer's specifications to determine if the pressure is within the recommended range. Low or inconsistent pressure can indicate a problem with the pump, relief valve, or other components.
6. Check for air in the system: Air in the hydraulic system can cause poor performance or erratic operation. Bleed the system to remove any air bubbles by following the recommended procedures in the manual.
7. Inspect hydraulic hoses and connections: Examine all hydraulic hoses and connections for signs of damage, such as cracks, bulges, or leaks. Replace any damaged hoses or tighten loose connections as necessary.
8. Test hydraulic components: Assess the performance of specific hydraulic components, such as cylinders, valves, or actuators, that may be affected by the problem. Check for proper operation, leaks, or abnormal noises. If a particular component is suspected of causing the issue, consult the machine's manual for specific testing procedures or consult a professional technician.
9. Consult technical support or a professional: If you are unable to identify or resolve the hydraulic problem on your own, it may be necessary to contact Case IH technical support or seek assistance from a qualified hydraulic technician. They can provide expert guidance and diagnose the issue accurately.

Remember to prioritize safety throughout the troubleshooting process. If you're unsure or uncomfortable with any step, it's best to consult a professional to avoid any potential risks or further damage to the equipment.
