Greenworks Pro Brushless Mower MO60L410 Assembly Instructions

Date: 7/12/2019 9:01:41 AM
Viewed view icon 45 times.

Lawn Mower Assembly Instructions


UNPACKING

• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.

• Inspect the product carefully to make sure no breakage or damage occurred during shipping.

• Do not discard the packing material until you have carefully inspected and operated the product.

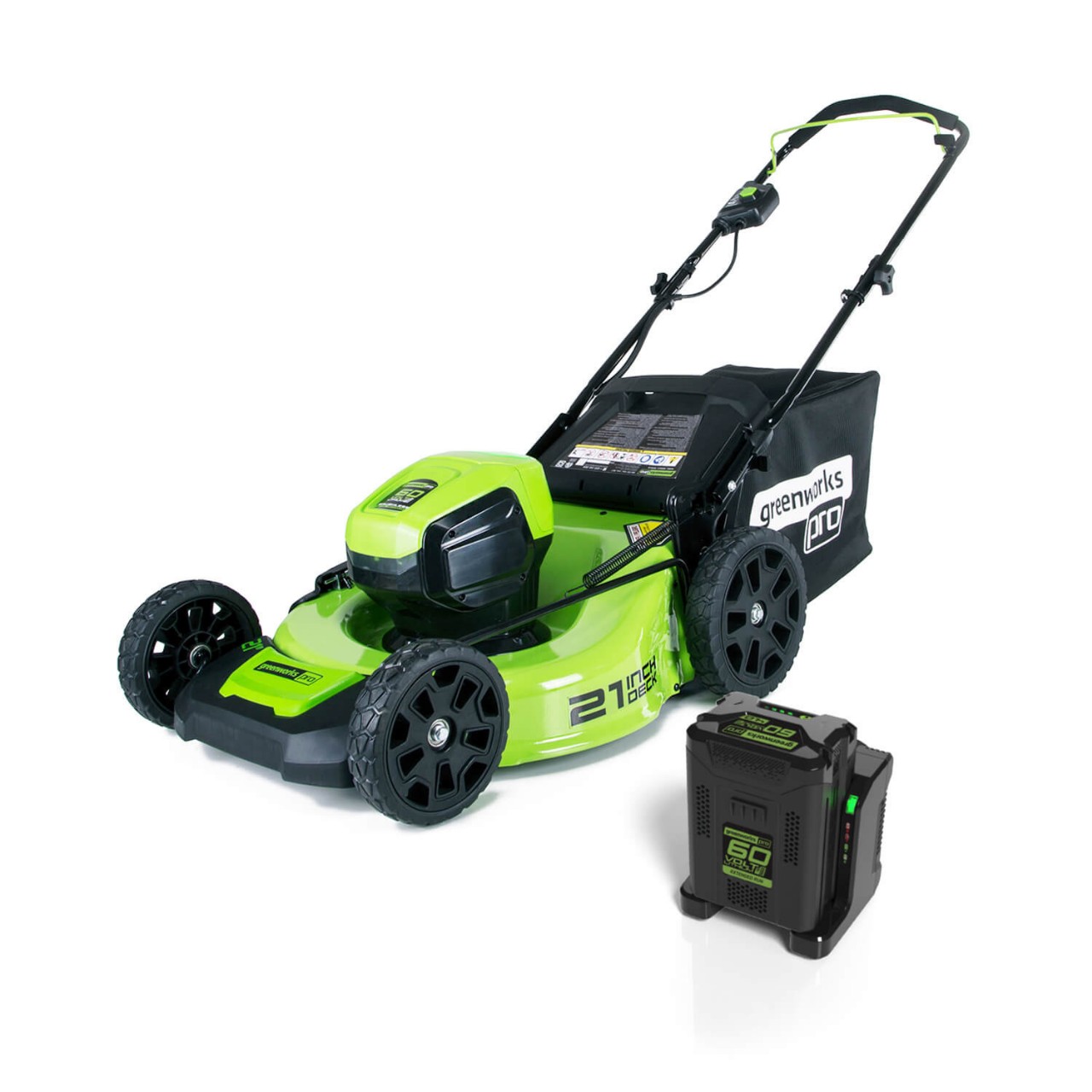

Greenworks Pro Brushless Mower MO60L410

Greenworks Pro Brushless Mower MO60L410

WARNING

If any parts are damaged or missing do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury.

WARNING

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING

Do not insert battery until assembly is complete and you are ready to mow. Failure to comply could result in accidental starting and possible serious personal injury.

WARNING

To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the product when assembling parts.

WARNING

Never operate the mower without the proper safety devices in place and working. Never operate the mower with damaged safety devices. Operation of this product with damaged or missing parts could result in serious personal injury.

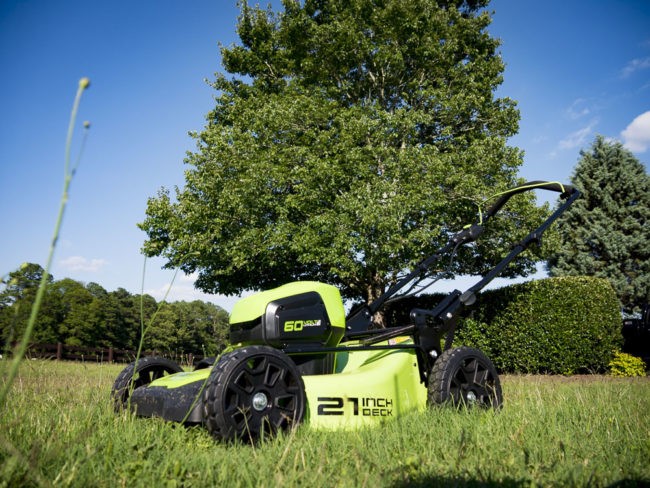

Greenworks Lawn Mower Installing The Grass Catcher Bag

Greenworks Lawn Mower Installing The Grass Catcher Bag

UNFOLDING AND ADJUSTING LOWER HANDLE WARNING


Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition.

• Do not damage the cables when folding or unfolding the handle.

• If a cable is damaged, contact an Authorized Service Dealer.

• Pull and rotate the handle knobs 90° on both sides to loosen the lower handles on both sides.

• Move the lower handles to the operating position. You may raise or lower the handle to a position comfortable for you. There are 3 positions for you to choose. Release the handle knobs to lock the lower handle into position.


INSTALLING THE UPPER HANDLE


• Align the mounting holes on the upper handle and the lower handle. Insert the carriage bolts and use the knobs to tighten them. Repeat the operation on the other side.


INSTALLING THE GRASS CATCHER BAG


•Lift the rear discharge door.

•Lift the grass catcher by its handle and place under the rear discharge door so that the hooks on the grass catcher are seated on the door rod.

•Release the rear discharge door. When installed correctly, the hooks on the grass catcher will extend through the openings on the rear discharge door.

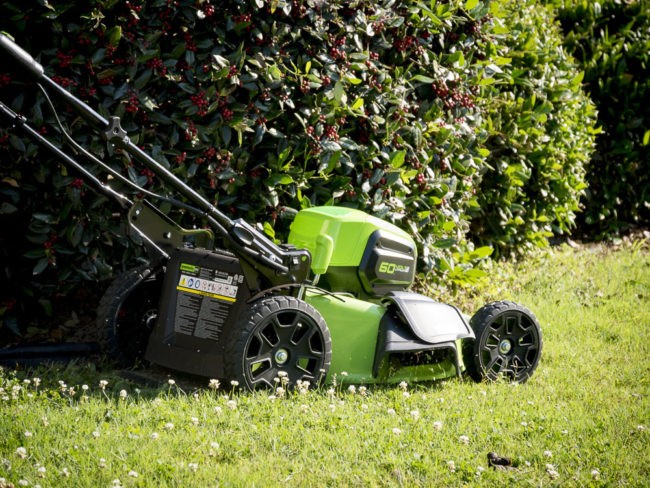

Greenworks Pro Lawn Mower Unpacking

Greenworks Pro Lawn Mower Unpacking

INSTALLING / REMOVING THE MULCHING PLUG


•To remove the mulching plug, lift the rear discharge door.

•Grasp the handle of the mulching plug. Using this handle, lift and pull the mulch plug out.

•The mulching plug is inserted at an angle, so it requires some force to remove it.

•The mulching plug must be removed in order to install the grass catcher bag.

•The mulching plug must be re-installed when the grass catcher bag is removed.


INSTALLING SIDE DISCHARGE CHUTE


•Lift the side discharge cover.

•Align the grooves on the side discharge chute with the pins on the underside of the discharge cover.

•Lower the discharge chute until the hooks on the mower deck are secured in the openings of the discharge chute.

•Release the side discharge cover.


TO INSTALL BATTERY PACK


•Lift and hold up the battery door.

•Align the battery with the mower’s battery port.

•Make sure the battery release button snaps in place and that battery is fully seated and secure in the mower before beginning operation.

•If the machine is not going to be used immediately, remove the battery.

•Close the door.


TO REMOVE BATTERY PACK

•Release the bail lever to stop the mower.

•Open the battery door.

•Press the battery release button on the mower. This will cause the battery to raise out of the tool slightly.

•Remove battery from the mower.
