Troubleshooting and Repairing the ABS Control Module in Ford F150

Troubleshooting and Repairing the ABS Control Module in Ford F150

The ABS control module is an essential component of the anti-lock braking system in Ford F150 trucks. This module is responsible for monitoring the speed of each wheel and adjusting the brake pressure accordingly to prevent wheel lock-up during sudden stops. If the ABS control module fails, the anti-lock braking system may not function properly, which can compromise the safety of the vehicle. In this essay, we will discuss the key aspects of troubleshooting and repairing the ABS control module in Ford F150.

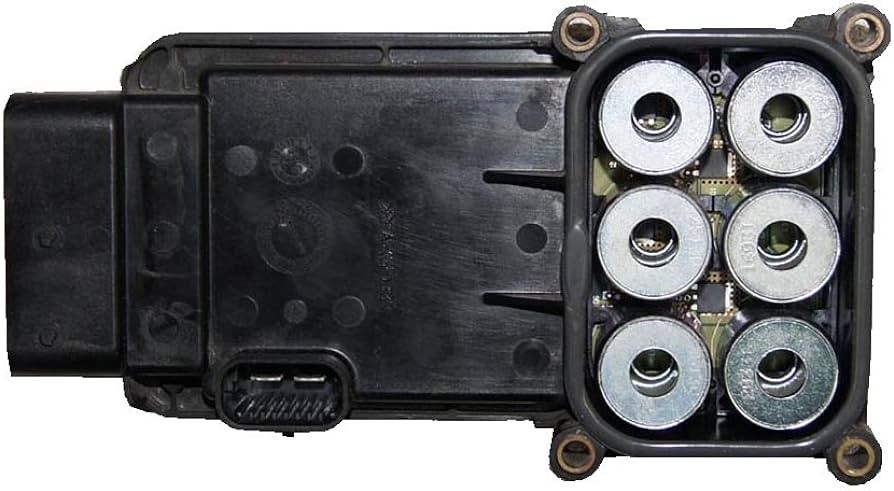

2008 ford f150 abs control module replacement

The ABS control module is a complex system that includes various components such as sensors, valves, and electronic control units. In Ford F150 trucks, the ABS control module is located near the brake master cylinder. The primary functions of the ABS control module are to monitor the speed of each wheel and to adjust the brake pressure accordingly. This helps to prevent wheel lock-up and skidding during sudden stops, which can reduce the risk of accidents. The ABS control module consists of several components, including the electronic control unit (ECU), hydraulic pump, and solenoid valves. The ECU is the brain of the ABS system and receives signals from the wheel speed sensors. The hydraulic pump is responsible for increasing or decreasing the brake pressure, while the solenoid valves control the flow of brake fluid to each wheel.

A faulty ABS control module can cause several symptoms, including the illumination of the ABS warning light, a pulsating brake pedal, and reduced braking performance. To diagnose issues with the ABS control module, specialized tools such as a scan tool or multimeter are required. These tools can help identify faults in the electronic components, wiring, or sensors. To troubleshoot the ABS control module, it is essential to follow a diagnostic procedure that involves checking the wheel speed sensors, hydraulic pump, and solenoid valves. The diagnostic procedure may also involve checking the wiring and connectors for any damage or corrosion. Using specialized tools such as a scan tool or multimeter can help to identify the root cause of the problem. For example, a scan tool can read the fault codes stored in the ABS control module, while a multimeter can measure the voltage and resistance of the sensors and wiring.

If the ABS control module is faulty, it can either be replaced or repaired. In some cases, replacing the module may be the only option, especially if the damage is severe or irreparable. However, repairing the ABS control module can be a cost-effective solution, especially if the issue is minor or if the module is out of warranty. To repair the ABS control module, it is essential to follow a set of steps that involve disassembling the module, identifying the faulty component, and replacing it with a new one. The repair process may also involve cleaning the module and checking the wiring and connectors for any damage or corrosion. After repairing the ABS control module, it is essential to test it to ensure that it is functioning correctly. This can be done by performing a road test and checking the brake pedal response, ABS warning light, and overall braking performance.

The ABS control module is a critical component of your Ford F150's braking system. It monitors the speed of each wheel and controls the anti-lock braking system (ABS) to prevent the wheels from locking up during braking. This can help you to maintain control of your vehicle and avoid accidents.

When the ABS control module fails, it can lead to a variety of problems, including:

  • ABS light illumination: This is the most common sign of an ABS control module problem. The ABS light will usually illuminate on the dashboard when the module detects a fault.
  • Traction control issues: The ABS control module also works with the traction control system. If the module fails, the traction control system may not work properly.
  • Brake failure: In some cases, ABS control module failure can lead to complete brake failure. This is a serious safety hazard, so it's important to have the module repaired or replaced as soon as possible.



2010 ford f150 abs control module

Troubleshooting the ABS control module

If you're experiencing any of the problems listed above, it's important to troubleshoot the ABS control module to determine if it's the cause of the problem. There are a few things you can do to troubleshoot the ABS control module:

  1. Check the ABS light for codes: If the ABS light is illuminated, you can use a scan tool to read the ABS trouble codes. These codes can give you a good idea of what's wrong with the ABS system.
  2. Inspect the ABS wiring: Look for any damaged or corroded wiring. If you find any problems, repair or replace the wiring as needed.
  3. Check the ABS wheel speed sensors: The ABS wheel speed sensors monitor the speed of each wheel. If a sensor is dirty or damaged, it can cause ABS problems. Clean or replace the sensor as needed.

If you've checked all of the above and you're still having problems with the ABS system, it's likely that the ABS control module is faulty.

Repairing the ABS control module

ABS control modules can be repaired, but it's a complex process that should only be attempted by a qualified technician. There are a few different ways to repair an ABS control module:

  • Component replacement: If a specific component in the module is faulty, it can be replaced.
  • Module repair: Some companies offer to repair ABS control modules by replacing or repairing faulty components.
  • Module replacement: If the module is beyond repair, it will need to be replaced.

Replacing the ABS control module

If the ABS control module in your Ford F150 needs to be replaced, it's important to use a genuine Ford replacement part. Genuine Ford parts are designed to work specifically with your vehicle's ABS system and ensure optimal performance and safety.

To replace the ABS control module, you will need to follow these steps:

  1. Disconnect the negative battery terminal.
  2. Locate the ABS control module. It is usually located under the hood, near the driver's side fender.
  3. Disconnect the electrical connectors from the ABS control module.
  4. Remove the mounting bolts that secure the ABS control module to the vehicle.
  5. Install the new ABS control module and tighten the mounting bolts.
  6. Reconnect the electrical connectors to the ABS control module.
  7. Connect the negative battery terminal.
  8. Start the vehicle and check for any ABS warning lights.



f150 abs module replacement

Average cost to repair or replace the ABS control module in a Ford F150

The average cost to repair or replace the ABS control module in a Ford F150 varies depending on the severity of the problem and the year and model of your vehicle. However, you can expect to pay anywhere from $500 to $1,500 for the repair.
