Yardmax Dual Rotating Rear Tine Tiller YT4565 Troubleshooting

Yardmax Dual Rotating Rear Tine Tiller YT4565 Troubleshooting

Yardmax Dual Rotating Rear Tine Tiller YT4565 Troubleshooting


Problem


Engine fails to start.


Cause


1. Spark plug wire is disconnected

2. Out of fuel or stale fuel

3. Engine and/or Fuel valve is not in

ON position

4. Choke lever is not in CLOSE position

5. Blocked fuel line

6. Fouled spark plug

7. Engine flooding

8. Belt tension lever is engaged


Remedy1. Foreign object lodged in tines.

2. Tine clevis pin(s) missing.

3. B elt worn and/or stretched.

4. Pulley and idler not in correct

adjustment.


1. Attach spark plug wire securely to spark plug

2. Fill with clean, fresh gasoline

3. Engine and Fuel valve must be in ON position

4. Choke level must be in CLOSE position for a cold start

5. Clean fuel line

6. Clean, adjust gap, or replace

7. Wait a few minutes to restart, but do not prime

8. Disengage the belt tension lever

Tine Tiller Tiller Moves Forward During Starting

Tine Tiller Tiller Moves Forward During Starting

Problem


Engine runs erratically


Cause


1. Spark plug wire is loose

2. Unit running with Choke lever in

CLOSE position

3. Blocked fuel line or stale fuel

4. Vent plugged

5. Water or dirt in fuel system

6. Dirty air cleaner

7. Improper carburetor adjustment


Remedy


1. Connect and tighten spark plug wire

2. Move choke lever to OPEN position

3. Clean fuel line. Fill tank with clean, fresh gasoline

4. Clear vent

5. Drain fuel tank. Refill with fresh fuel

6. Clean or replace air cleaner

7. Refer to engine manual


Problem


Engine overheats


Cause


1. Engine oil level low

2. Dirty air cleaner

3. Air flow restricted

4. Carburetor not adjusted properly


Remedy


1. Fill crankcase with proper oil

2. Clean air cleaner

3. Remove housing and clean

4. Refer to engine manual

Tine Tiller Engine Fails To Start

Tine Tiller Engine Fails To Start

Problem


Engine will not stop when throttle control is positioned at stop, or engine speed does not increase properly when throttle control is adjusted.


Cause


1. Debris interfering with throttle linkage.

2. Improper throttle linkage adjustment


Remedy


1. Clean dirt and debris.

2. Refer to Engine Manual to check and adjust throttle linkage.


Problem


Tiller moves forward during starting.


Cause


Tine clutch control not in neutral position.


Remedy


Tine clutch control lever must be released to neutral to start the engine.


Problem


Tiller is difficult to control when tilling (machine jumps or lurches forward).


Cause


1. Improper tilling depth setting.

2. Too high engine speed on hard ground.


Remedy


1. Raise the tines for shallower tilling by raising the depth regulator rod.

2. Set the throttle lever at lower speed.


Problem


Tines do not engage.


Cause


1. Foreign object lodged in tines.

2. Tine clevis pin(s) missing.

3. B elt worn and/or stretched.

4. Pulley and idler not in correct adjustment.


Remedy


1. Stop tiller completely, check and discard foreign object.

2. Replace tine clevis pin(s).

3. Replace belt.

4. Contact dealer.

Published: Tuesday, July 16, 2019 Viewed view icon 263 times.

Ask me about:

Rate this:
Raiting: 5 / Total: 1

Comments / Discussions

You must sign in to use this section.
gareth_21 (6/17/2023 1:39:27 AM):
The article was thought-provoking 🚕💚 👏 👐.. Well-researched and informative 👍💚 👏 💚 👏 👐 Highly readable 😉
harrison_31 (6/14/2023 1:38:12 AM):
Legendary💚 😎 💥
Sean_NY (6/11/2023 1:36:44 AM):
Among the legends 😀🦊 😌 😃.. Enjoyed it 🧐🦊 😌
connornc (6/8/2023 1:35:06 AM):
Explanation was comprehensive and satisfactory🤚 🤚 🐇.. Pleasure to read 🙋 👀🤚 🤚 🤚 🤚 🐇 Info helpful
LunarLion (6/5/2023 1:33:36 AM):
thanks😈 ✊ 🙌.. excellent😈 ✊ 😈 ✊ 🙌 thanks for your helps 🙏
BookwormBabe (6/2/2023 1:31:55 AM):
I am satisfied with the clarification provided💦 🖖 🙂.. Well-organized 😎💦 🖖
Lavonte (5/29/2023 12:07:04 PM):
The article was well-researched and well-written 🍉🐴 🙂 ✌.. Informative and well-written 👌 🧐🐴 🙂
Betty (5/25/2023 10:29:30 PM):
Legendary🙋 🤝 👀
gary1987MO (5/15/2023 1:23:03 AM):
Well-written and engaging 👍😏 😎 🐈
LunarLion (5/12/2023 1:21:30 AM):
The community is so helpful and knowledgeable. 😏😌 😅 👑
Prince (5/9/2023 1:19:59 AM):
Effort appreciated, helpful👀 👌 🐵.. Amazing!👀 👌 👀 👌 🐵 🤙 👍 Awesome
Larue (5/6/2023 1:18:32 AM):
Effort appreciated, helpful👍 😗 😸
Sandra (5/3/2023 1:16:56 AM):
Informative and enjoyable 😎😇 🤠 😂.. Explanation was thorough and satisfactory😇 🤠 😇 🤠 😂 Well-balanced ☕
Oscar (4/27/2023 6:03:42 PM):
Highly readable 😉👏 ✌ 👌
gary1987MO (4/22/2023 11:54:27 PM):
The information was very helpful and I am grateful👍 😇 🐴.. The description was thorough and satisfactory👍 😇 👍 😇 🐴 helpful thanks
Joel (4/19/2023 11:41:37 AM):
Effort appreciated, helpful💥 🏼 🐘.. Remarkable 🌎💥 🏼 💥 🏼 🐘 Outstanding 🍇
CHRISTOPHER-ND (4/16/2023 10:10:04 PM):
Explanation was thorough and satisfactory😎 🏻 🐉.. Engaging ✔😎 🏻
Grandpa (4/12/2023 10:54:28 PM):
thanks for your helps 🙏✔ ❤ 🐉.. Incredible✔ ❤ ✔ ❤ 🐉 👍 Well-balanced ☕
Samantha (4/5/2023 6:34:45 PM):
The information exceeded my expectations😁 🐾 🐶.. Among the legends 😀😁 🐾
Neil (4/2/2023 6:52:59 PM):
Great resource for finding quick answers. ✌🤛 👐 👄.. it was very helpful🤛 👐 🤛 👐 👄 🐦 🤠 I found the article to be enjoyable 🍄
TOBIAS-FL (3/29/2023 10:35:32 PM):
Well-argued 😊 😉🐻 😈 🏻
macauley (3/26/2023 11:14:40 PM):
not enough for me but good😆 🏼 🐉
alex_14 (3/23/2023 2:01:19 AM):
it was very helpful👑 👀 👍.. Convincing 🍀👑 👀 👑 👀 👍 🤙 👁 I appreciated the insights in the article ✌
gareth_21 (3/10/2023 7:53:08 AM):
Well-researched 👍 😉🧐 🏼 ✔.. I am content with the explanation🧐 🏼 🧐 🏼 ✔ 🤠 Engrossing 😌
scott19KS (3/6/2023 1:40:25 PM):
Exceptional 😗🐇 ✔ 🐵.. Enjoyed it 🧐🐇 ✔

Related images about "Yardmax Dual Rotating Rear Tine Tiller YT4565 Troubleshooting"

Tine Tiller Engine Fails To Start

Tine Tiller Engine Fails To Start

Askme / 7/16/2019 7:03:18 AM (Original: 1000X1000 px)

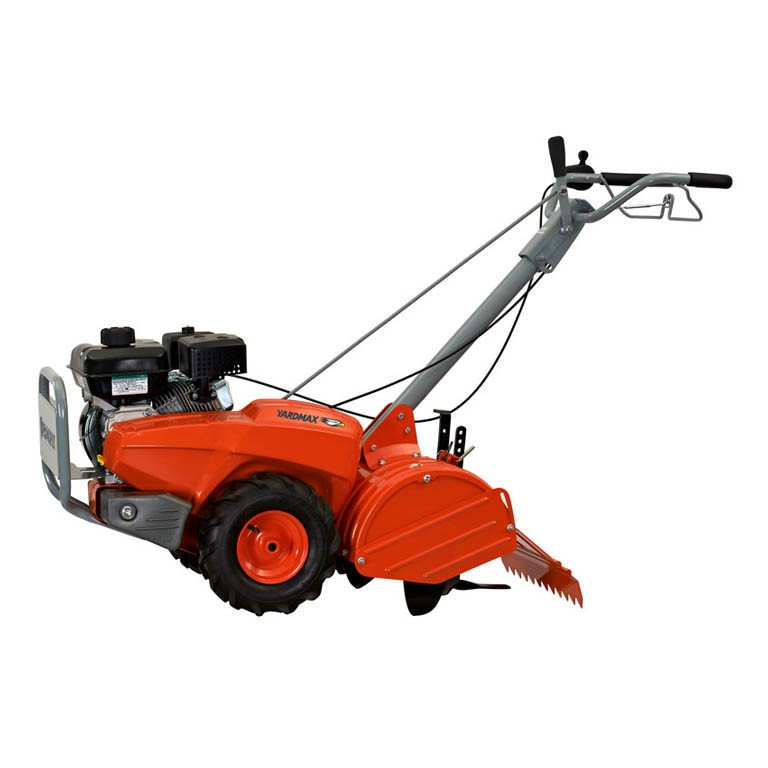

Tine Tiller Tiller Moves Forward During Starting

Tine Tiller Tiller Moves Forward During Starting

Askme / 7/16/2019 7:03:40 AM (Original: 768X768 px)

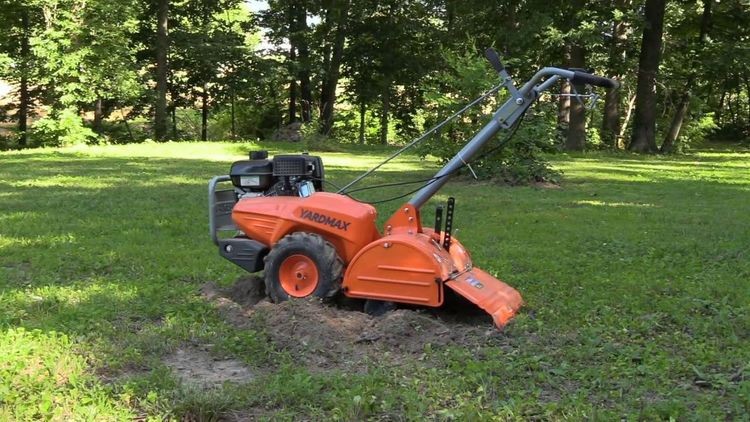

Tine Tiller İs Difficult To Control When Tilling
