How to make LG french door refrigerator removing/assembling the doors and drawers?

Removing/Assembling the Doors and Drawers

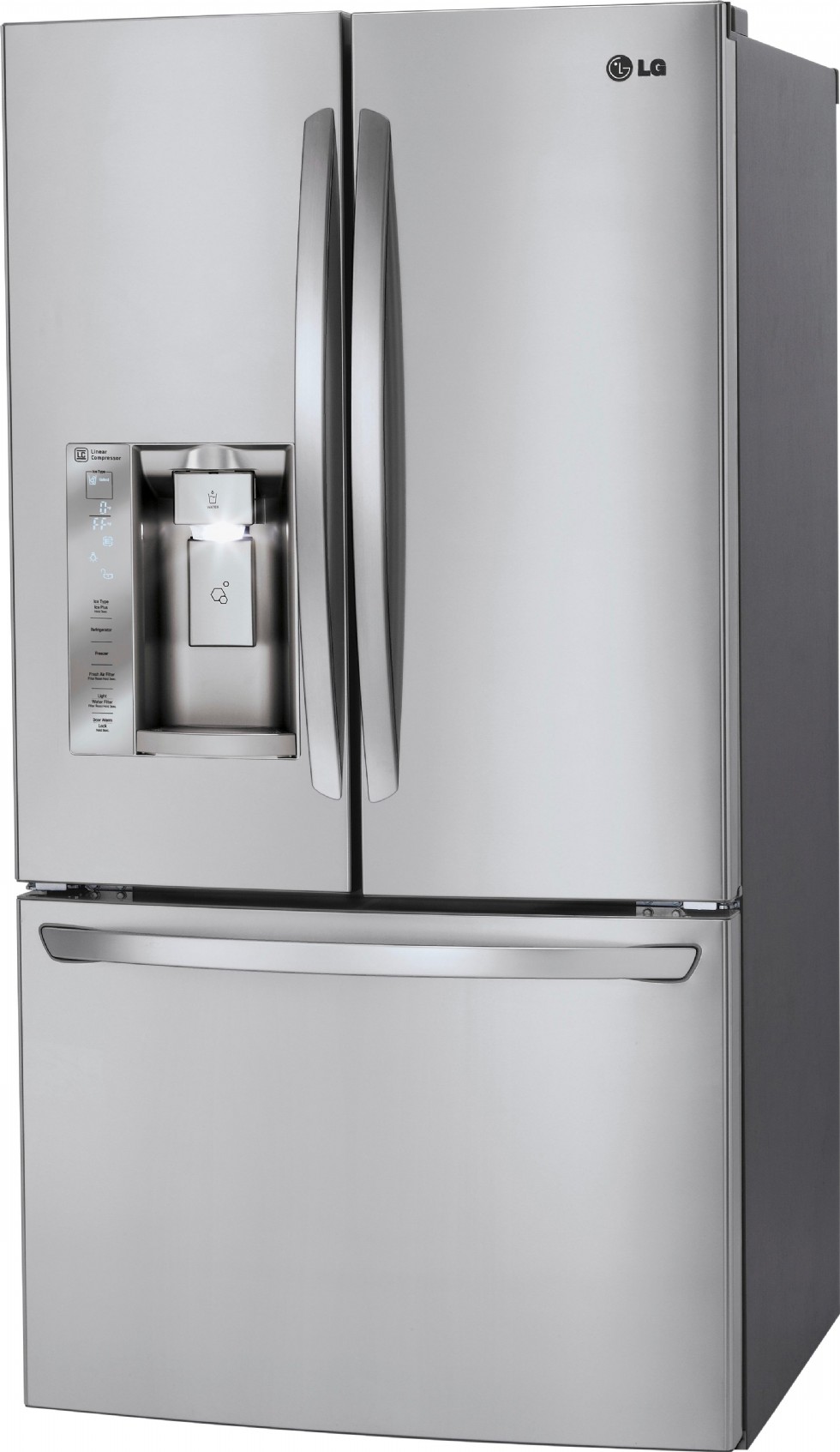

LG / Refrigerator Removing the doors is always recommended when it is necessary to move the refrigerator through a narrow opening.

LG French Door Refrigerator Removing the Left Refrigerator Door

1 The water supply is connected to the upper right part of the rear surface of the refrigerator. Remove the ring in the joint area. Hold the water supply connection and gently push the Collet to detach the water supply line.

2 Remove the screw from the hinge cover at the top of the refrigerator. Lift the hook (not visible), located at the bottom of the front side of the cover with a flat-head screwdriver.

3 Remove the cover and pull out the tube . Disconnect all wire harnesses .

4 Rotate the hinge lever counterclockwise . Lift the top hinge free of the hinge lever latch.

5 Lift the door from the middle hinge pin and remove the door.

LG French Door Refrigerator Removing the Right Refrigerator Door

1 Remove the top hinge cover screw .Lift the hook (not visible), located at the bottom of the front side of the cover , with a flat-head screwdriver.

2 Detach the wire harness .

3 Rotate the hinge lever clockwise. Lift the top hinge free of the hinge lever latch.

4 Lift the door from the middle hinge pin and remove the door.

Assembling the Right Refrigerator Door

Install the right-side door first.

1 Make sure that the plastic sleeve is inserted in the bottom of the door. Lower the door onto the middle hinge pin as shown in the figure.

2 Fit the hinge over the hinge lever latch and slot it into place. Rotate the lever counterclockwise to secure the hinge.

3 Connect the wire harness .

4 Make sure that the door-switch located inside the cover is tightly connected. Position the cover in its place. Insert and tighten the cover screw .

LG French Door Refrigerator Assembling the Left Refrigerator Door

Install the left refrigerator door after the right door is installed.

1 Make sure that the plastic sleeve is inserted in the bottom of the door. Install the refrigerator door onto the middle hinge.

2 Fit the hinge over the hinge lever latch and slot it into place. Rotate the lever clockwise and fasten the hinge.

3 Connect all the wire harnesses.

4 Push the water supply tube into the hole on the top case and pull it through the backplate.

5 Hold the water supply connection and gently push in the collet to connect the water supply line as shown in and . Insert the tube at least 5/8 inch (15 mm) into the connector. Assemble the clip to the joint part for fastening.

6 Make sure that the door-switch located inside the cover is tightly connected. Place the cover in its position and tighten the cover screw .

Removing the Freezer Drawers

The top, middle and bottom drawers are all removed in the same way. In the following figures, the Pullout Drawer located above the freezer drawer is not shown for clarity.

1 Pull the drawer open to full extension.

2 Gently lift and pull out the ice bin.

On the left rail, use a flat blade screwdriver to push in on the tab to release the drawer from the rail, as shown below. Once the left side is loose, push the tab on the right side with your finger to release the drawer. Lift the front of the drawer up, then pull it straight out.

3 Remove the screws from the rails at both ends.

4 With both hands, grip both sides of the drawer and pull it up to remove it from the rails.

5 With both hands, hold each rail and push it in to allow both rails to slide in simultaneously.

LG French Door Refrigerator Assembling the Freezer Drawers

The top, middle and bottom drawers are all assembled in the same way.

1 With both hands, pull out each rail simultaneously until both rails are fully extended.

2 Grasp the drawer on each side and hook the drawer supports into the rail tabs located on both sides.

3 Lower the door into final position and tighten the screws located on both sides.

4 Insert drawer into the frame, and push drawer back into place until you hear a click.

5 Insert the lower basket in the rail assembly.
