How to use Xpress Recovery2?

How to use Xpress Recovery2?

XpressRecovery2is designed to provide quick backup and restoration of hard disk data. Supporting Microsoft operating systems including Windows XP/2000/NT/98/Me and DOS, and file systems includingFAT16,FAT32, andNTFS, XpressRecovery2is able to back up data on hard disks onPATAandSATAIDE controllers. After XpressRecovery2is executed from CD-ROM for the first time, it will stay permanent in your hard disk. If you wish to run XpressRecovery2later, you can simply pressF9during systembootupto enter XpressRecovery2without the CD-ROM.System requirements:

1. Intelx86platforms
2. At least64Mbytes of system memory
3. VESA-supportedVGA cards

How to use the XpressRecovery2Initial access by booting from CD-ROM and subsequent access by pressing theF9key: Steps: After entering BIOS Setup, go to Advanced BIOS Feature and set to boot from CD-ROM. Save the settings and exit the BIOS Setup. Insert the provided driver CD into your CD-ROM drive. Upon system restart, the message which says "Boot from CD/DVD:" will appear in the bottom left corner of the screen. Press any key to enter XpressRecovery2. After the steps above are completed, subsequent access to XpressRecovery2can be made by simply pressing thekey during system power-on.

NOTE:

1. If you have already entered XpressRecovery2by booting from the CD-ROM, you can enter XpressRecovery2by pressing thekey in the future.
2. System storage capacity and the reading/writing speed of the hard disk will affect the data backup speed.
3. It is recommended that XpressRecovery2be immediately installed once you complete installations of OS and all required drivers as well as software.

The Main Screen of XpressRecovery2

1. RESTORE:Restore the backed-up data to your hard disk. (This button will not appear if there is no backup file.)
2. BACKUP:Back up data from hard disk.
3. REMOVE:Remove previously-created backup files to release disk space.
4. (This button will not appear if there is no backup file.)
5. REBOOT:Exit the main screen and restart the system.
6. Limitations:Not compatible to Xpress Recovery.
7. For the use of XpressRecovery2, a primary partition must be reserved.
8. XpressRecovery2will store the backup file at the end of the hard disk, so free space available on the hard disk for the backup file must be allocated in advance. (A minimum4GBis recommended but the actual space is dependent on the size of the data to be backed up)
9. Capable of backing up hard disks installed with Windows operating systems including DOS and Windows XP/2000/NT/9x/Me.
10. USB hard disks are currently not supported.
11. Does not support RAID/AHCI(class code 0104/0106) hard disks.
12. Capable of backing up and restoring only the first physical hard disk.
13. Hard disks detection sequence is as follows:
14. PATAIDE primary channel
15. PATAIDE secondary channel
16. SATAIDE channel 1
17. SATAIDE channel 2
18. SATAIDE channel 3
19. SATAIDE channel 4
20. Precautions:When using hard disks with more than128Gunder Windows 2000, be sure to execute the EnableBigLba.exe program from the driver CD before data backup.
21. It is normal that data backup takes longer time than data restoration.
22. XpressRecovery2is compliant with theGPLregulations.
23. On a few motherboards based onNvidiachipsets, BIOS update is required for XpressRecovery2to correctly identify RAID andSATAIDE mode. Please contact your motherboard manufacturer.
24. XpressRecovery2supports onlyPATAhard disks and notSATAhard disks on the following motherboards (As this is a BIOS-related issue, it can be solved by BIOS update)GA-K8UGA-K8U-9GA-K8NXP-SLIGA-K8NUltra-SLIGA-K8NPro-SLIGA-K8NXP-9GA-K8NUltra-9GA-K8NF-9(PCBVer. 1.0)GA-K8NE(PCBVer. 1.0)GA-K8NMF-9GA-8N-SLIRoyalGA-8N-SLIProGA-8N-SLI

RELATED BEST GIGABYTE GAMING MOTHERBOARDS

Gigabyte Z390 Gaming X (Intel LGA1151/Z390/ATX/2xM.2/Realtek ALC892/Intel LAN/HDMI/Gaming Motherboard)

GIGABYTE / GA-990FX-Gaming Motherboard Gigabyte Z390 Gaming X (Intel LGA1151/Z390/ATX/2xM.2/Realtek ALC892/Intel LAN/HDMI/Gaming Motherboard):

• Supports 9th and 8th Intel Core processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• New 10+2 Phases digital PWM Design; Form Factor: ATX Form Factor; 30.5cm x 22.5cm
• Dual Ultra-Fast M.2 with PCIe Gen3 x4 (1 with thermal Guard) & SATA interface
• 2-Way Crossfire Multi-Graphics Support with PCIe Armor and Ultra Durable Design
• Intel native USB 3.1 Gen2 Type-A

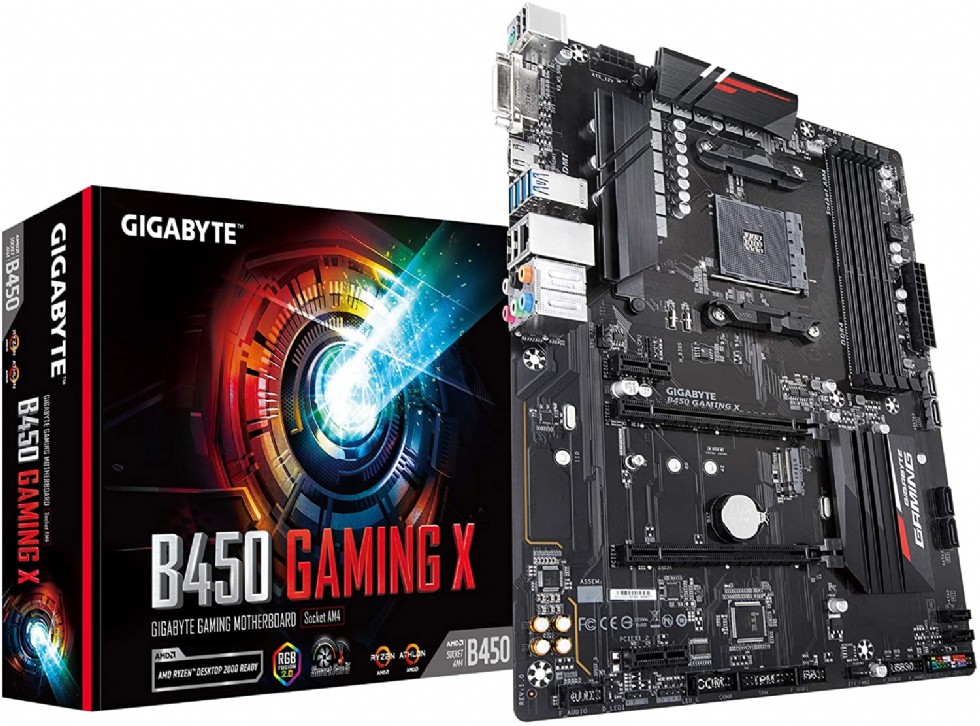

GIGABYTE B450 Gaming X (AMD Ryzen AM4/ 1xM.2/Hmdi/DVI/USB 3.1/DDR4/ATX/Motherboard)

GIGABYTE / GA-990FX-Gaming Motherboard GIGABYTE B450 Gaming X (AMD Ryzen AM4/ 1xM.2/Hmdi/DVI/USB 3.1/DDR4/ATX/Motherboard):

• Supports AMD RYZEN 2nd generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st generation processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Hdmi, DVI-D ports for multiple display
• Ultra-fast NVMe PCIe Gen3 x4 M.2
• High quality Audio Capacitors and Audio Noise Guard design

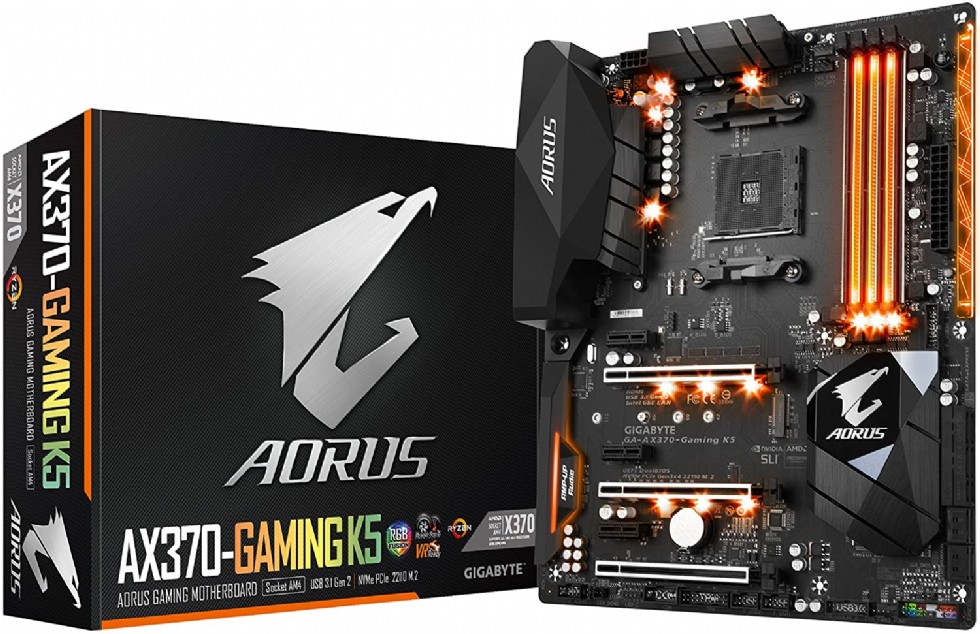

GIGABYTE AORUS GA-AX370-Gaming K5 (AMD Ryzen AM4/ X370/ RGB FUSION/ SMART FAN 5/ HDMI/ M.2/ USB 3.1 Type-C/ ATX/ DDR4/ Motherboard)
